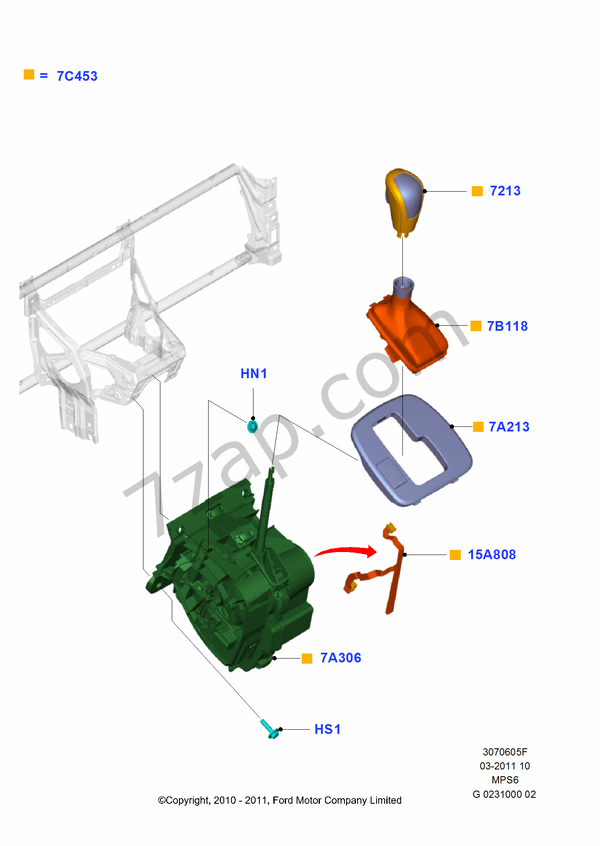

| PNC | Part code | Title | Quantity | Modifications | information |
i |
|---|
| 15A808 | Wire Assy | - from 23.08.2010, C-Max 2010-
|
| 15A808 | 1481254 | Wiring Assy | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 7213 | Knob - Gear Change Lever | - from 23.08.2010, C-Max 2010-
|
| 7213 | 1477338 | Knob - Gear Change Lever | 1.00 | - from 23.08.2010, to 17.04.2015, C-Max 2010-
|
|
| 7213 | 2026960 | Knob - Gear Change Lever | 1.00 | - from 17.04.2015, C-Max 2010-
|
|
| 7A213 | Housing Assy - Selector Dial | - from 23.08.2010, C-Max 2010-, LHD
- from 23.08.2010, C-Max 2010-, RHD
|
| 7A213 | 1685705 | Housing Assy - Selector Dial | 1.00 | - from 23.08.2010, C-Max 2010-, LHD
|
|
| 7A213 | 1685706 | Housing Assy - Selector Dial | 1.00 | - from 23.08.2010, C-Max 2010-, RHD
|
|
| 7A306 | Housing - Selector Lever | - from 23.08.2010, C-Max 2010-
|
| 7A306 | 5313893 | Housing - Selector Lever | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 7B118 | Gaiter | - from 23.08.2010, C-Max 2010-
|
| 7B118 | 1481252 | Gaiter - Gear Change Lever | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 7C453 | Housing Assy - Gear Shift | - from 23.08.2010, C-Max 2010-, LHD
- from 23.08.2010, C-Max 2010-, RHD
|
| 7C453 | 1866011 | Housing Assy - Gear Shift | 1.00 | - from 23.08.2010, to 17.04.2015, C-Max 2010-, RHD
|
|
| 7C453 | 1866009 | Housing Assy - Gear Shift | 1.00 | - from 23.08.2010, to 17.04.2015, C-Max 2010-, LHD
|
|
| 7C453 | 2028353 | Housing Assy - Gear Shift | 1.00 | - from 17.04.2015, C-Max 2010-, RHD
|
|
| 7C453 | 2028367 | Housing Assy - Gear Shift | 1.00 | - from 17.04.2015, C-Max 2010-, LHD
|
|
| HN1 | Nut | - from 23.08.2010, C-Max 2010-
|
| HN1 | 1382575 | Nut - Special | 2.00 | M6- from 23.08.2010, C-Max 2010-
|
|
| HS1 | Screw | - from 23.08.2010, C-Max 2010-
|
| HS1 | 1348769 | Screw | 2.00 | M6X1.0X24.5- from 23.08.2010, C-Max 2010-
|
|
