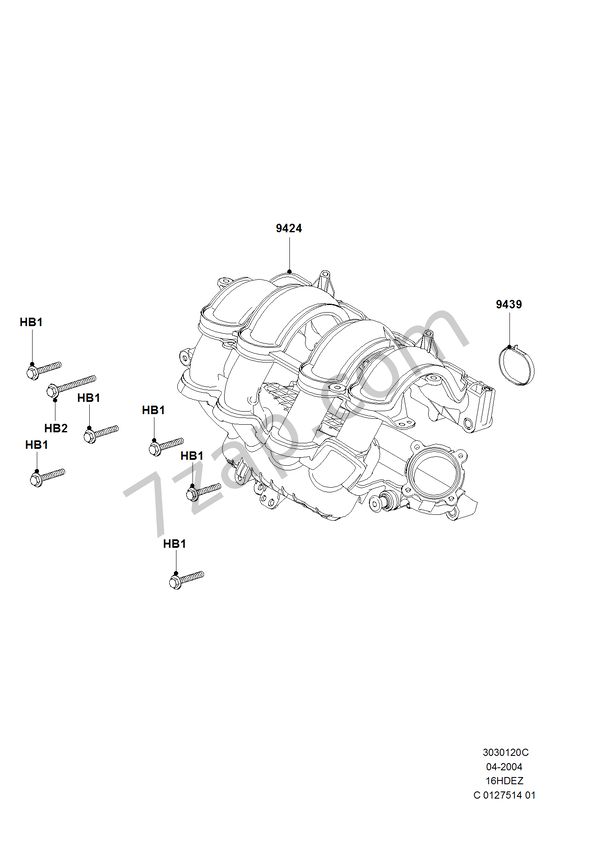

| PNC | Part code | Title | Quantity | Modifications | information |
i |
|---|
| 9424 | Manifold Assy - Inlet | - from 23.08.2010, C-Max 2010-
|
| 9424 | 1807950 | Manifold Assy - Inlet | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 9439 | Gasket - Intake Manifold | - from 23.08.2010, C-Max 2010-
|
| 9439 | 1338179 | Gasket - Intake Manifold | 4.00 | - from 23.08.2010, C-Max 2010-
|
|
| HB1 | Bolt | - from 23.08.2010, C-Max 2010-
|
| HB1 | 1255690 | Bolt | 6.00 | M8 X 45MM- from 23.08.2010, C-Max 2010-
|
|
| HB2 | Bolt | - from 23.08.2010, C-Max 2010-
|
| HB2 | 1361900 | Bolt - Hex.Head | 1.00 | M8 x 70MM- from 23.08.2010, C-Max 2010-
|
|
