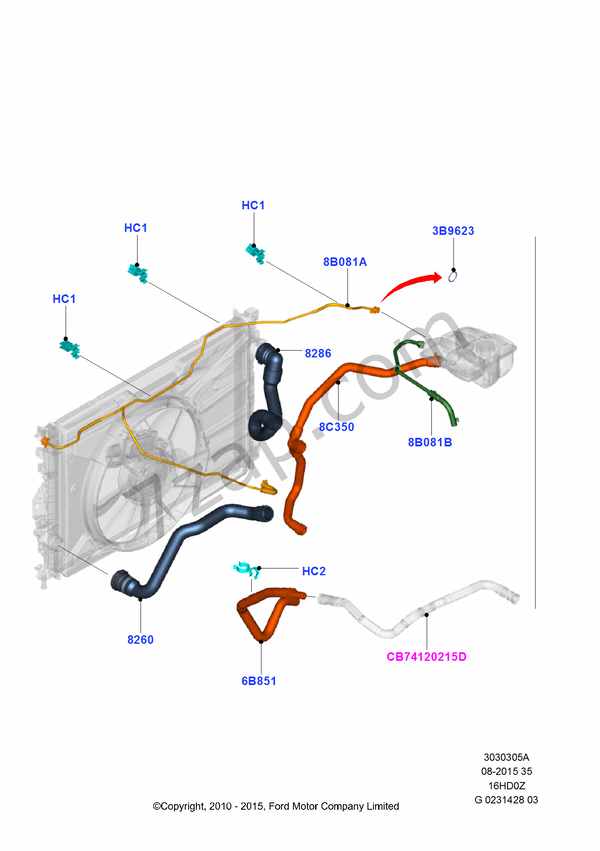

| PNC | Part code | Title | Quantity | Modifications | information |
i |
|---|
| 6B851 | Hose | - from 23.08.2010, C-Max 2010-
|
| 6B851 | 1736550 | Hose | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 8260 | Hose Assy | - from 23.08.2010, C-Max 2010-
|
| 8260 | 1789175 | Hose - Radiator | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 8286 | Hose Assy | - from 23.08.2010, C-Max 2010-
|
| 8286 | 1724346 | Hose - Radiator | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 8B081A | Hose Assy | - from 23.08.2010, C-Max 2010-
|
| 8B081A | 1820565 | Hose | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 8B081B | Hose Assy | - from 23.08.2010, C-Max 2010-
|
| 8B081B | 1822767 | Hose - Overflow Container | 1.00 | - from 23.08.2010, to 03.12.2013, C-Max 2010-
|
|
| 8B081B | 5273097 | Hose - Overflow Container | 1.00 | - from 03.12.2013, C-Max 2010-
|
|
| 8C350 | Hose Assy | - from 23.08.2010, C-Max 2010-
|
| 8C350 | 1826474 | Hose Assy | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| HC1 | Clip | - from 23.08.2010, C-Max 2010-
|
| HC1 | 1386838 | Clip - Pipe - Dual | 3.00 | Clip 6+6X1-3- from 23.08.2010, C-Max 2010-
|
|
| HC2 | Clip | - from 23.08.2010, C-Max 2010-
|
| HC2 | 1037132 | Clip - Hose | 1.00 | - from 23.08.2010, C-Max 2010-
|
|
| 3B9623 | "O" Ring | - from 21.04.2011, C-Max 2010-
|
| 3B9623 | 1820342 | "O" Ring | 1.00 | - from 21.04.2011, C-Max 2010-
|
|
