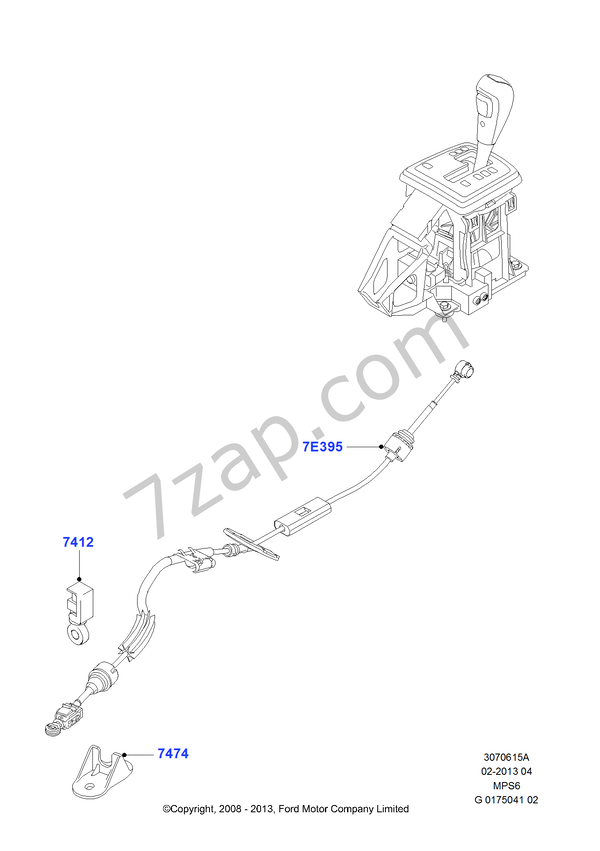

| PNC | Part code | Title | Quantity | Modifications | information |
i |
|---|
| 7474 | Bracket | - from 25.02.2008, to 23.07.2010, C-MAX 2007-2010
|
| 7474 | 5114825 | Bracket - Control Cable | 1.00 | - from 25.02.2008, to 23.07.2010, C-MAX 2007-2010
|
|
| 7E395 | Cable Assy - Selector Lever Control | - from 25.02.2008, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratorq CR TC (110PS) - DW
- from 25.02.2008, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratorq-TDCi (136PS) - DW10
|
| 7E395 | 1526268 | Cable Assy - Selector Lever Control | 1.00 | When Replacing FINIS- 1526268 Order Also Additional Bracket FINIS- 1798222 For Proper Cable Fitting- from 25.02.2008, to 01.12.2008, C-MAX 2007-2010, 2.0L Duratorq CR TC (110PS) - DW
- from 25.02.2008, to 01.12.2008, C-MAX 2007-2010, 2.0L Duratorq-TDCi (136PS) - DW10
|
|
| 7E395 | 1820383 | Cable Assy - Selector Lever Control | 1.00 | - from 01.12.2008, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratorq-TDCi (136PS) - DW10
- from 01.12.2008, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratorq CR TC (110PS) - DW
|
|
| 7412 | Link | - from 25.02.2008, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratorq CR TC (110PS) - DW
|
| 7412 | 1798222 | Collet | 1.00 | - from 25.02.2008, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratorq CR TC (110PS) - DW
|
|
