| PNC | Part code | Title | Quantity | Modifications | information |
i |
|---|

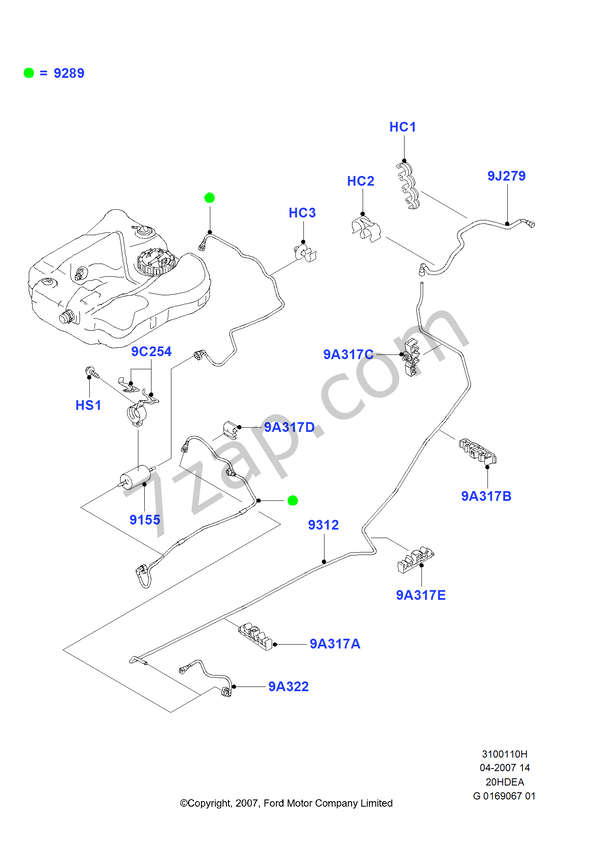

| 9155 | Filter Assy | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Frame Fuel Filter - Heavy Duty
|
| 9155 | 1465324 | Filter Assy - Fuel - Primary | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Frame Fuel Filter - Heavy Duty
|
|
| 9289 | Tube Assy - Fuel | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratec-HE (145PS) - MI4, Frame Fuel Filter - Heavy Duty
|
| 9289 | 1739535 | Tube Assy | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, 2.0L Duratec-HE (145PS) - MI4, Frame Fuel Filter - Heavy Duty
|
|
| 9312 | Tube | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9312 | 1347373 | Tube | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9A317A | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9A317A | 1357370 | Clip | 3.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9A317B | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9A317B | 1701512 | Clip | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9A317C | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9A317C | 1324505 | Clip | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9A317D | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Programmable Fuel Fired Aux Heater
- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, With Aux Heater/Programmable
|
| 9A317D | 1234044 | Clip | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Programmable Fuel Fired Aux Heater
- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, With Aux Heater/Programmable
|
|
| 9A317E | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Programmable Fuel Fired Aux Heater
- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, With Aux Heater/Programmable
|
| 9A317E | 1360843 | Clip | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Programmable Fuel Fired Aux Heater
- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, With Aux Heater/Programmable
|
|
| 9A322 | Tube Assy - Fuel | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9A322 | 1321894 | Pipe - Fuel | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9C254 | Clamp - Filter Mounting | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, 5-Speed Manual Trans - MTX75, Frame Fuel Filter - Heavy Duty
|
| 9C254 | 1468972 | Clamp - Filter Mounting | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, 5-Speed Manual Trans - MTX75, Frame Fuel Filter - Heavy Duty
|
|
| 9C254 | 1583189 | Mounting Assy | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, 5-Speed Manual Trans - MTX75, Frame Fuel Filter - Heavy Duty
|
|
| 9J279 | Hose Assy - Fuel Feed | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9J279 | 1465325 | Pipe - Fuel | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| HC1 | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| HC1 | 1310345 | Clip | -1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| HC2 | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| HC2 | 1310344 | Clip | -1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| HC3 | Clip | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Frame Fuel Filter - Heavy Duty
|
| HC3 | 1344944 | Clip - Fuel Pipe Securing | -1.00 | Clip 8-9X6.5X0.8-6- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Frame Fuel Filter - Heavy Duty
|
|
| HS1 | Screw | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Frame Fuel Filter - Heavy Duty
|
| HS1 | 1388603 | Screw | -1.00 | 4.8 X 13MM- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Frame Fuel Filter - Heavy Duty
|
|
