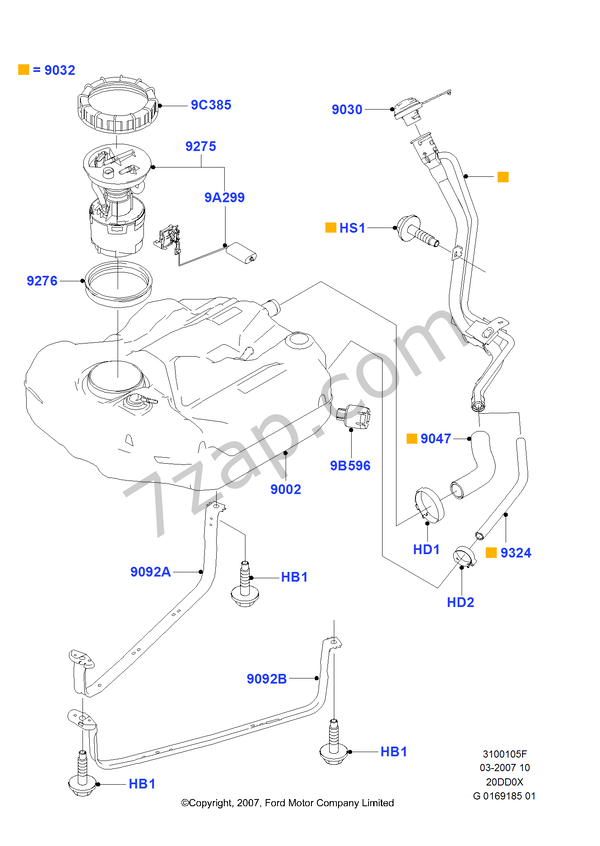

| PNC | Part code | Title | Quantity | Modifications | information |
i |
|---|
| 9002 | Tank Assy - Fuel | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9002 | 1441112 | Tank Assy - Fuel | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9002 | 1441118 | Tank Assy - Fuel | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010, Stage IV + DPF Emissions
|
|
| 9030 | Cap Assy - Fuel Tank Filler | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9030 | 1667958 | Cap Assy - Fuel Tank Filler | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9032 | Pipe - Fuel Filler | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9032 | 1521703 | Pipe - Fuel Filler | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9047 | Hose - Filler Pipe | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9047 | 1234547 | Hose - Filler Pipe | 1.00 | - from 26.03.2007, to 05.11.2007, C-MAX 2007-2010
|
|
| 9047 | 1529814 | Hose - Filler Pipe | 1.00 | - from 05.11.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9092A | Strap Assy - Fuel Tank | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9092A | 1715464 | Strap Assy - Fuel Tank | 1.00 | - from 15.04.2010, to 23.07.2010, C-MAX 2007-2010
|
|
| 9092A | 1341970 | Strap Assy - Fuel Tank | 1.00 | - from 26.03.2007, to 15.04.2010, C-MAX 2007-2010
|
|
| 9092B | Strap Assy - Fuel Tank | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9092B | 1252227 | Strap Assy - Fuel Tank | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9275 | Sender And Pump Assy | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9275 | 1447513 | Sender Assy - Fuel Tank | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9276 | Seal | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9276 | 1069084 | Gasket | 1.00 | Ø 122- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9324 | Hose - Connecting | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9324 | 1529863 | Hose - Vent | 1.00 | - from 05.11.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9324 | 1234555 | Hose - Vent | 1.00 | - from 26.03.2007, to 05.11.2007, C-MAX 2007-2010
|
|
| 9A299 | Sender Assy | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9A299 | 1341326 | Sender Assy - Fuel Tank | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9B596 | Cap - Valve | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9B596 | 1254755 | Cap | 1.00 | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| 9C385 | Ring - Retaining | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| 9C385 | 1301451 | Ring - Retaining | 1.00 | Ø 144.2- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| HB1 | Bolt | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| HB1 | 1471753 | Bolt | 3.00 | M8 x 40MM- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| HD1 | Clamp | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| HD1 | 1062032 | Clamp | 1.00 | Ø 30-45MM- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| HD2 | Clamp | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| HD2 | 1301066 | Clamp - Hose | 1.00 | Ø 21- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
| HS1 | Screw | - from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
| HS1 | 1028475 | Screw | 2.00 | M6 X 14MM- from 26.03.2007, to 23.07.2010, C-MAX 2007-2010
|
|
