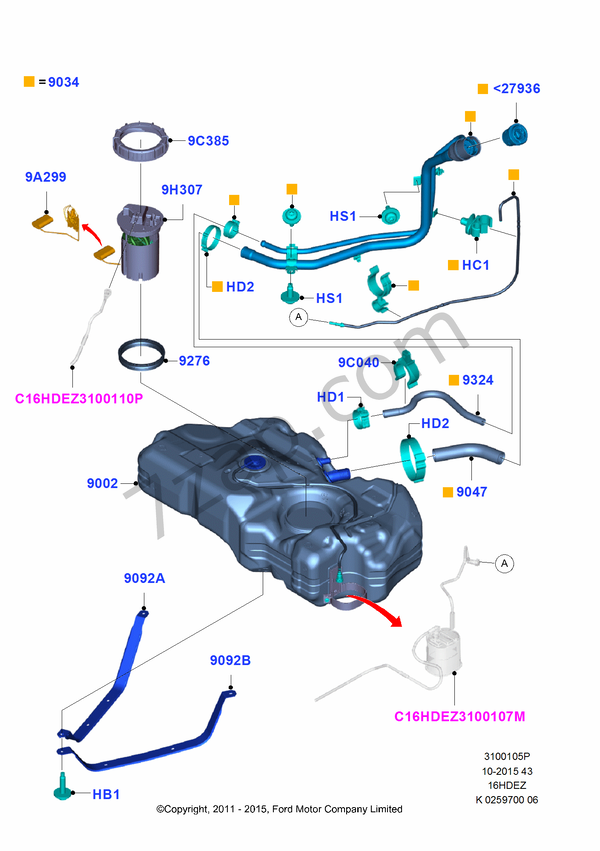

| PNC | Part code | Title | Quantity | Modifications | information |
i |
|---|
| <27936 | Housing | - from 08.08.2012, B-MAX 2012-
|
| <27936 | 1711510 | Valve - Inlet | 1.00 | Service Kit- from 08.08.2012, B-MAX 2012-
|
|
| <27936 | 2008356 | Valve - Inlet | 1.00 | Alternative Part, Service Kit- from 08.08.2012, B-MAX 2012-
|
|
| 9002 | Tank Assy - Fuel | - from 08.08.2012, B-MAX 2012-
|
| 9002 | 1858351 | Tank Assy - Fuel | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| 9034 | Pipe Assy - Filler | - from 08.08.2012, B-MAX 2012-
|
| 9034 | 1901349 | Pipe - Fuel Filler | 1.00 | Before Ordering Please Consider Using Capless Service Kit – Commodity <27936- from 08.08.2012, B-MAX 2012-
|
|
| 9047 | Hose - Filler Pipe | - from 08.08.2012, B-MAX 2012-
|
| 9047 | 1770631 | Hose - Filler Pipe | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| 9092A | Strap Assy - Fuel Tank | - from 08.08.2012, B-MAX 2012-
|
| 9092A | 1836245 | Strap Assy - Fuel Tank | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| 9092B | Strap Assy - Fuel Tank | - from 08.08.2012, B-MAX 2012-
|
| 9092B | 1836246 | Strap Assy - Fuel Tank | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| 9276 | Seal | - from 08.08.2012, B-MAX 2012-
|
| 9276 | 1069084 | Gasket | 1.00 | Ø 122- from 08.08.2012, B-MAX 2012-
|
|
| 9324 | Hose - Connecting | - from 08.08.2012, B-MAX 2012-
|
| 9324 | 1770628 | Hose - Vent | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| 9A299 | Sender Assy | - from 08.08.2012, B-MAX 2012-
|
| 9A299 | 1858523 | Sender Assy - Fuel Tank | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| 9C040 | Clip | - from 08.08.2012, B-MAX 2012-
|
| 9C040 | 1540586 | Clip | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| 9C385 | Ring - Retaining | - from 08.08.2012, B-MAX 2012-
|
| 9C385 | 1301451 | Ring - Retaining | 1.00 | Ø 144.2- from 08.08.2012, B-MAX 2012-
|
|
| 9H307 | Sender And Pump Assy | - from 08.08.2012, B-MAX 2012-
|
| 9H307 | 1864482 | Sender And Pump Assy | 1.00 | - from 08.08.2012, B-MAX 2012-
|
|
| HB1 | Bolt | - from 08.08.2012, B-MAX 2012-
|
| HB1 | 1381996 | Screw And Washer Assy | 3.00 | M8 x 30MM- from 08.08.2012, B-MAX 2012-
|
|
| HC1 | Clip | - from 08.08.2012, B-MAX 2012-
|
| HC1 | 1012887 | Clip | 3.00 | 7.5 + 7.5 X 6 X 2- from 08.08.2012, B-MAX 2012-
|
|
| HD1 | Clamp | - from 08.08.2012, B-MAX 2012-
|
| HD1 | 1301066 | Clamp - Hose | 1.00 | Ø 21- from 08.08.2012, B-MAX 2012-
|
|
| HD2 | Clamp | - from 08.08.2012, B-MAX 2012-
|
| HD2 | 1521426 | Clamp - Hose | 2.00 | Ø 38.5- from 08.08.2012, B-MAX 2012-
|
|
| HS1 | Screw | - from 08.08.2012, B-MAX 2012-
|
| HS1 | 1757831 | Bolt And Washer Assy - Hex.Head | 2.00 | M6 X 14MM- from 08.08.2012, B-MAX 2012-
|
|
