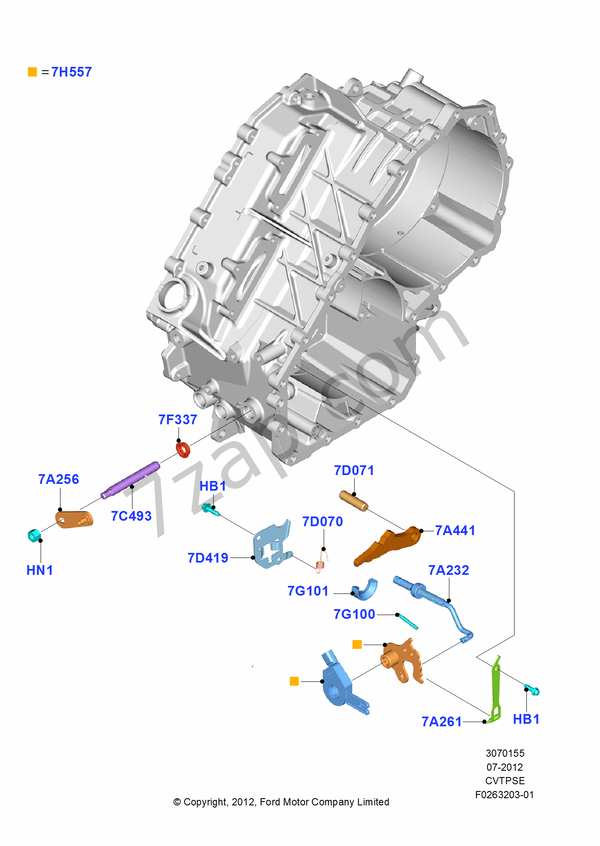

Transmission Control Mechanisms FORD C-MAX Energi 2014- (CCG)

Transmission Control MechanismsFORDC-MAX Energi 2014- (CCG)
PNCPart codeTitleQuantityModifications
HN1Nut
  • from 15.09.2014, C-MAX Energi 2014- (CCG)
HN14767189 Nut1.00M10
  • from 15.09.2014, C-MAX Energi 2014- (CCG)
7A232Rod - Parking Pawl Actuating
7A256Lever Assy - Manual Control
7A261Spring
7A441Pawl
7C493Shaft
7D070Spring - Pawl
7D071Shaft
7D419Plate
7F337Seal
7G100Pin - Retaining
7G101Support
7H557Sensor Asy - Transmission Detent
HB1Bolt
